Sweep Bends

Code: 394
Component measures
Code: 394

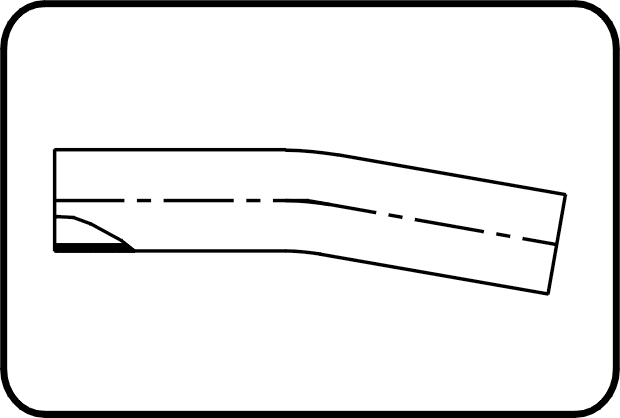

  • Sweep Bend 11°
  • radius 1.5 x OD
  • formed out of pipe
  • Butt + E-socket-welding
  • PE 100-RC black
** On request.
Dimension Code Detail Unit Weight
90 70.394.0090.09 90 SDR9 ISO S-4 20 bar 1.700
110 70.394.0110.09 110 SDR9 ISO S-4 20 bar 2.480
125 70.394.0125.09 125 SDR9 ISO S-4 20 bar 4.060
140 70.394.0140.09 140 SDR9 ISO S-4 20 bar 4.750
160 70.394.0160.09 160 SDR9 ISO S-4 20 bar 6.650
180 70.394.0180.09 180 SDR9 ISO S-4 20 bar 8.990
200 70.394.0200.09 200 SDR9 ISO S-4 20 bar 12.200
225 70.394.0225.09 225 SDR9 ISO S-4 20 bar 16.000
250 70.394.0250.09 250 SDR9 ISO S-4 20 bar 21.190
280 70.394.0280.09 280 SDR9 ISO S-4 20 bar 26.640
315 70.394.0315.09 315 SDR9 ISO S-4 20 bar 39.000
355 70.394.0355.09 355 SDR9 ISO S-4 20 bar 55.300
400 70.394.0400.09 400 SDR9 ISO S-4 20 bar 66.200
450 70.394.0450.09 450 SDR9 ISO S-4 20 bar 83.960
500 70.394.0500.09 500 SDR9 ISO S-4 20 bar 117.000
560 70.394.0560.09 560 SDR9 ISO S-4 20 bar 150.000
630 70.394.0630.09 630 SDR9 ISO S-4 20 bar 200.000
