Overview

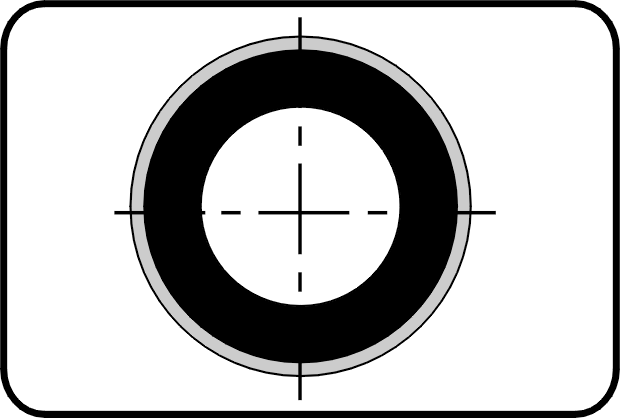

- Pipe black 12m
- with blue signal layer
- extruded
- PE 100-RC SURELINE II
From dim. 250 not available from stock - delivery time on request.
| Dimension | Code | Detail | Unit | Weight |
|---|---|---|---|---|
| 75 | 70.712.1075.17 | 75X4,5 SDR17 ISO S-8 | metre | 1.030 |
| 90 | 70.712.1090.17 | 90X5,4 SDR17 ISO S-8 | metre | 1.470 |
| 110 | 70.712.1110.17 | 110X6,6 SDR17 ISO S-8 | metre | 2.190 |
| 125 | 70.712.1125.17 | 125X7,4 SDR17 ISO S-8 | metre | 2.790 |
| 140 | 70.712.1140.17 | 140X8,3 SDR17 ISO S-8 | metre | 3.500 |
| 160 | 70.712.1160.17 | 160X9,5 SDR17 ISO S-8 | metre | 4.570 |
| 180 | 70.712.1180.17 | 180X10,7 SDR17 ISO S-8 | metre | 5.770 |
| 200 | 70.712.1200.17 | 200X11,9 SDR17 ISO S-8 | metre | 7.120 |
| 225 | 70.712.1225.17 | 225X13,4 SDR17 ISO S-8 | metre | 9.000 |
| 250 | 70.712.1250.17 | 250X14,8 SDR17 ISO S-8 | metre | 11.100 |
| 280 | 70.712.1280.17 | 280X16,6 SDR17 ISO S-8 | metre | 13.900 |
| 315 | 70.712.1315.17 | 315X18,7 SDR17 ISO S-8 | metre | 17.600 |
| 355 | 70.712.1355.17 | 355X21,1 SDR17 ISO S-8 | metre | 22.400 |
| 400 | 70.712.1400.17 | 400X23,7 SDR17 ISO S-8 | metre | 28.300 |
| 450 | 70.712.1450.17 | 450X26,7 SDR17 ISO S-8 | metre | 35.800 |
| 500 | 70.712.1500.17 | 500X29,7 SDR17 ISO S-8 | metre | 44.200 |
| 560 | 70.712.1560.17 | 560X33,2 SDR17 ISO S-8 | metre | 55.400 |
| 630 | 70.712.1630.17 | 630X37,4 SDR17 ISO S-8 | metre | 70.200 |
| 710 | 70.712.1710.17 | 710X42,1 SDR17 ISO S-8 | metre | 89.000 |
| 800 | 70.712.1800.17 | 800X47,4 SDR17 ISO S-8 | metre | 113.000 |
| 900 | 70.712.1900.17 | 900X53,3 SDR17 ISO S-8 | metre | 143.000 |
| 1000 | 70.712.1100.17 | 1000X59,3 SDR17 ISO S-8 | metre | 176.000 |
| 1200 | 70.712.1120.17 | 1200X71,1 SDR17 ISO S-8 | metre | 254.000 |
| 75 | 70.712.1075.11 | 75X6,8 SDR11 ISO S-5 | metre | 1.480 |
| 90 | 70.712.1090.11 | 90X8,2 SDR11 ISO S-5 | metre | 2.140 |
| 110 | 70.712.1110.11 | 110X10,0 SDR11 ISO S-5 | metre | 3.180 |
| 125 | 70.712.1125.11 | 125X11,4 SDR11 ISO S-5 | metre | 4.121 |
| 140 | 70.712.1140.11 | 140X12,7 SDR11 ISO S-5 | metre | 5.130 |
| 160 | 70.712.1160.11 | 160X14,6 SDR11 ISO S-5 | metre | 6.740 |
| 180 | 70.712.1180.11 | 180X16,4 SDR11 ISO S-5 | metre | 8.510 |
| 200 | 70.712.1200.11 | 200X18,2 SDR11 ISO S-5 | metre | 10.500 |
| 225 | 70.712.1225.11 | 225X20,5 SDR11 ISO S-5 | metre | 13.300 |
| 250 | 70.712.1250.11 | 250X22,7 SDR11 ISO S-5 | metre | 16.306 |
| 280 | 70.712.1280.11 | 280X25,4 SDR11 ISO S-5 | metre | 20.500 |
| 315 | 70.712.1315.11 | 315X28,6 SDR11 ISO S-5 | metre | 25.900 |
| 355 | 70.712.1355.11 | 355X32,2 SDR11 ISO S-5 | metre | 32.900 |
| 400 | 70.712.1400.11 | 400X36,3 SDR11 ISO S-5 | metre | 41.700 |
| 450 | 70.712.1450.11 | 450X40,9 SDR11 ISO S-5 | metre | 52.800 |
| 500 | 70.712.1500.11 | 500X45,4 SDR11 ISO S-5 | metre | 65.200 |
| 560 | 70.712.1560.11 | 560X50,8 SDR11 ISO S-5 | metre | 81.700 |
| 630 | 70.712.1630.11 | 630X57,2 SDR11 ISO S-5 | metre | 103.000 |
| 710 | 70.712.1710.11 | 710X64,5 SDR11 ISO S-5 | metre | 131.000 |
| 800 | 70.712.1800.11 | 800X72,6 SDR11 ISO S-5 | metre | 167.000 |
| 900 | 70.712.1900.11 | 900X81,7 SDR11 ISO S-5 | metre | 211.000 |
| 1000 | 70.712.1100.11 | 1000X90,8 SDR11 ISO S-5 | metre | 260.000 |
| 1200 | 70.712.1120.11 | 1200X108,9 SDR11 ISO S-5 | metre | 382.000 |
