Overview

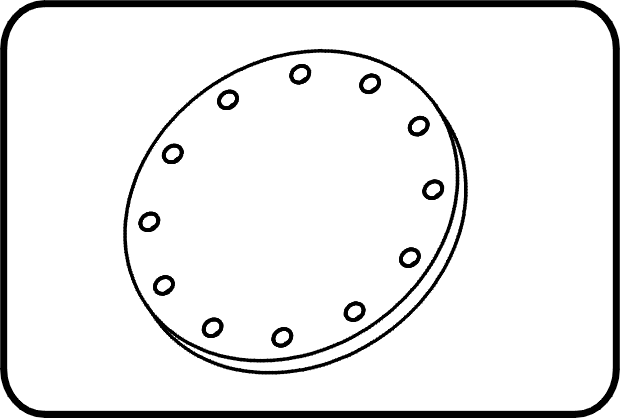

- Blind Flange no steel insert
- DIN/pressureless applications
- machined/drilled PN10
- Flange connection
- PVDF natural
| Dimension | Code | Detail | Unit | Weight |
|---|---|---|---|---|
| 20 | 30.334.0020.00 | 20 | piece | 0.202 |
| 25 | 30.334.0025.00 | 25 | piece | 0.300 |
| 32 | 30.334.0032.00 | 32 | piece | 0.354 |
| 40 | 30.334.0040.00 | 40 | piece | 0.539 |
| 50 | 30.334.0050.00 | 50 | piece | 0.647 |
| 63 | 30.334.0063.00 | 63 | piece | 0.740 |
| 75 | 30.334.0075.00 | 75 | piece | 0.941 |
| 90 | 30.334.0090.00 | 90 | piece | 1.048 |
| 110/125 | 30.334.0110.00 | 110/125 | piece | 1.298 |
| 140 | 30.334.0140.00 | 140 | piece | 1.730 |
| 160/180 | 30.334.0160.00 | 160/180 | piece | 1.203 |
| 200/225 | 30.334.0200.00 | 200/225 | piece | 3.168 |
