Sewage water tank sealed by PE liner on Airbus

Toilet system protected through sewage water tank

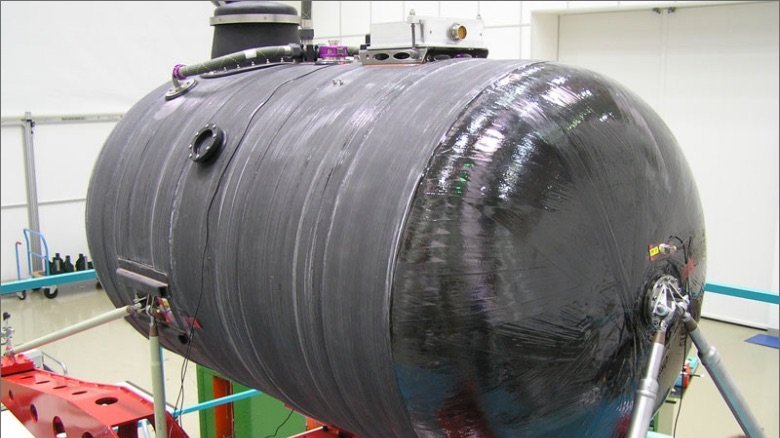

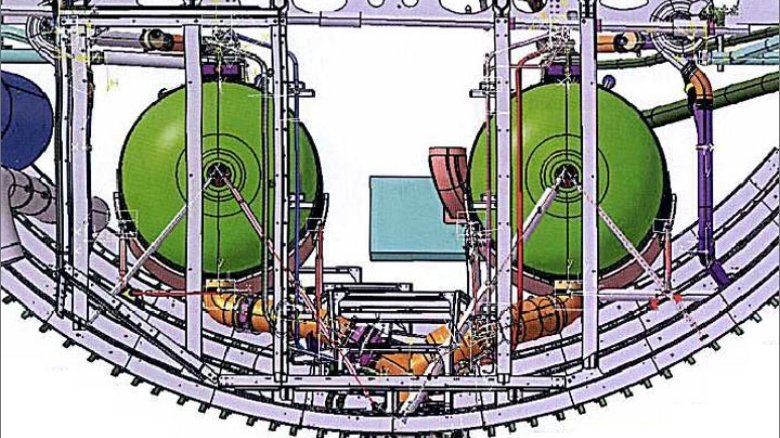

This is how a sewage water tank is created for the vacuum toilet system of the Airbus A340-500/600 HGW. It is a special weight optimized type - every kilogram is important. The standard system of two smaller tanks with stainless steel inliners has been replaced by one single large tank to optimize weight and performance.



The finished tank module can withstand 9 times the acceleration due to gravity.


Each of the tanks on boards has a volume of 720 litres, whereby 570 litres are used for the storage of sewage water coming from the onboard toilets. Beside the storage of the sewage water from toilets, the inside surface of these tanks is loaded with chemical cleaning agents and objects which hit the surface with high energy.



The leak tightness and chemical resistance is reached by the special PE liner. The weight of a completed tank element with all attached parts is approximately 50 kg. A completely filled tank can withstand a load of 9 g. A test with an acceleration of 20 g is applied for a short time, which simulates a load of 12.5 tons on the supports. A life time of 30 years is guaranteed.
